Description

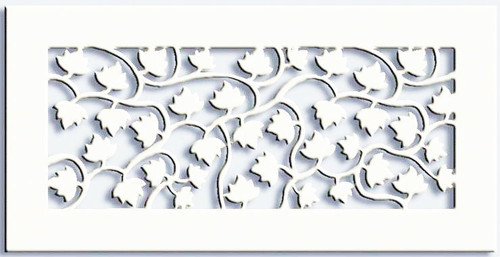

This steel cover comes in 1/8" thick steel and the option to choose from one of our many finishes to match your décor, including the much-requested oil rubbed bronze finish.
- Made from 1/8" USA steel (11 gauge)
- Back side of return has a 3/4" frame that fits in to the duct opening (can be made flat, no frame by request)
- Covers with mounting holes come with countersunk screw holes and powder coated matching #8 screws
- Production Time is 4-5 weeks
OUTSIDE DIMENSIONS:
The flange sizes are as follows:
Up to and including 4” in the smallest direction, the flange width will be 1-1/2” larger overall than the duct size and centered.
From 4-1/2” to 13-1/2” in the smallest direction, the flange width will be 2” larger overall than the duct size and centered.
From 14” and larger in the smallest direction, the flange width will be 2-1/2” larger overall than the duct size and centered
Openness: 61%
 |  |  |  | |||
| How to Measure | Color Swatches | Technical Specs | Cut Sheet | |||
|
|
| |||||
| CFM Data |
| Accessories |
FAQ:
Q: Do you offer custom sizes?
A: Yes. We offer custom sizes in wood and metal
Q: Can these be used for floor? Wall? Ceiling?
A: This cover is recommended for wall or ceiling use only.
Q: Can these be painted?
A: Yes - if you wish to paint them yourself you will select the 'White' option.
Q: Are mounting holes necessary?
A: Mounting holes are typically needed for a wall or ceiling application. If you do not want to use screws/mounting holes to attach your covers you will need to have an alternative method of adhesion.
Q: What is the depth of the frame on the back?
A: Return has a 3/4" frame on the back:
Supply covers have an adjustable damper on the back:
Q: Do i need a damper?
A: This is totally up to you. If you do open and close the flow of air on your covers often, then you should get a damper. If you don't ever adjust the flow of air on your covers then it is likely not necessary.
Q: How do I adjust the damper?
A: The damper is adjustable using a flat head screwdriver.
Additional Details
- Material:
- Steel
- Finish:
- White
- Finish:
- Black
- Finish:
- Silver
- Finish:
- Brown
- Finish:
- Oil Rubbed Bronze
- Finish:
- Brushed Stainless Steel
- Finish:
- Almond
- Finish:
- Antique Bronze
- Finish:
- Beige
- Finish:
- Bronze
- Finish:
- Copper Clad
- Finish:
- Copper Texture
- Finish:
- Dark Brown
- Finish:
- Dark Roast
- Finish:
- Silverado
- Finish:
- Weathered Brown
- Back:
- Flange
- Back:
- Optional Flat (no flange)
