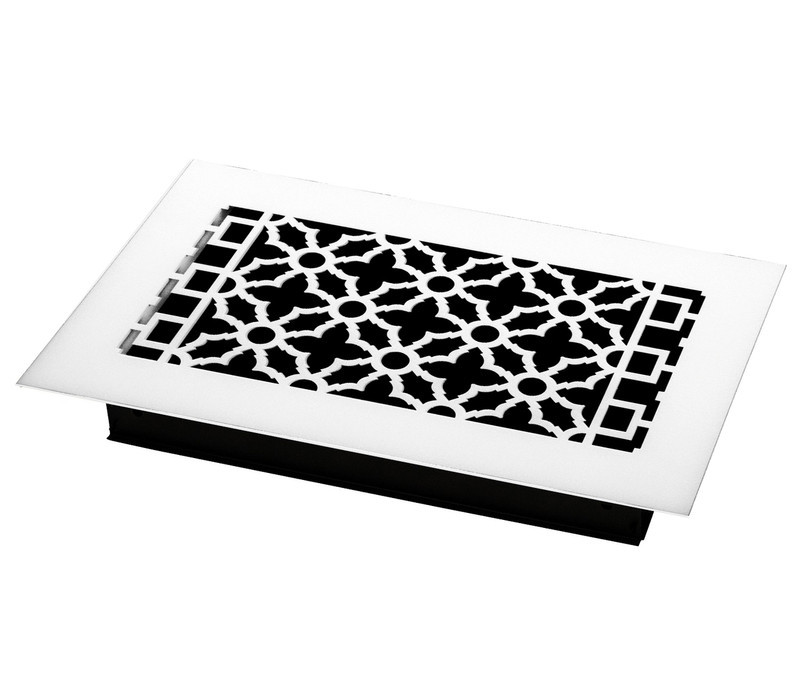

This steel cover comes in 1/8" thick steel and the option to choose from one of our many finishes to match your décor, including the much-requested oil rubbed bronze finish.
- Made from 1/8" USA steel (11 gauge)
- Back side of return has a 3/4" frame that fits in to the duct opening (can be made flat, no frame by request)
- Covers with mounting holes come with countersunk screw holes and powder coated matching #8 screws
- Production Time is 4-5 weeks
Openness: 63%
Outside Dimensions:
The flange (overall) sizes are as follows:
Up to and including 4” in the smallest direction, the flange width will be 1-1/2” larger overall than the duct size and centered (ie. 10x4 will be 11.5x5.5 overall).
From 4-1/2” to 13-1/2” in the smallest direction, the flange width will be 2” larger overall than the duct size and centered (ie. 12x6 will be 14x8 overall).
From 14” and larger in the smallest direction, the flange width will be 2-1/2” larger overall than the duct size and centered (ie. 20x20 will be 22.5x22.5 overall).
